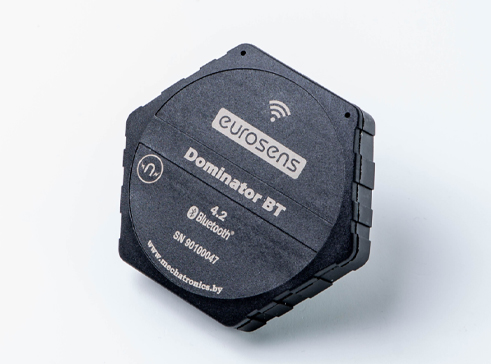

Dominator Bt S1
EUROSENS DOMINATOR BT S1
Wireless ultrasonic level sensor with Bluetooth
Bluetooth Connectivity
Wireless configuration and data reading via Bluetooth 4.2 BLE technology
Ultrasonic Measurement
Non-contact level measurement using ultrasonic technology
IP67 Protection
Protected against dust and temporary immersion in water
5-Year Battery Life
Extended operation on battery power with low energy consumption
200m Range
Wireless connection up to 200 meters in direct sight
Wide Temperature Range
Operates in extreme conditions from -40°C to +85°C
Specification
| General Information | |
| Product Model | EUROSENS DOMINATOR BT |
| Measurement Principle | Ultrasonic, non-contact |
| Communication | Bluetooth |
| Technical Specifications | |
| Measurement Range | Up to 6 meters |
| Max Measurement Error | 1% |
| Resolution | 1 mm |
| Beam Angle | 6° |
| Response Time | 1 second |
| Operating Frequency | 40 kHz |
| Wireless Communication | |
| Bluetooth Version | 4.2 BLE |
| Transmitter Mode | Advertising |
| Wireless Range (direct sight) | 200 meters |
| Transmission Power | +8 dBm |
| Power Supply | |
| Battery Life | 5 years |
| Battery Type | Lithium battery |
| Environmental Specifications | |
| Protection Class | IP67 (Dust-tight and protected against temporary immersion) |
| Temperature Range | -40°C to +85°C |
| Material | Stainless steel 316L / PVDF |
Features
- Wireless ultrasonic level measurement
- Bluetooth 4.2 BLE connectivity for configuration and data reading
- IP67 protection rating for harsh environments
- 5-year battery life with low energy consumption
- 200-meter wireless range in direct sight
- +8 dBm transmission power
- Maximum measurement error of 1%
- Wide operating temperature range (-40°C to +85°C)
- Non-contact measurement technology
- Advertising transmitter mode
- Stainless steel or PVDF construction
- Easy installation and maintenance
