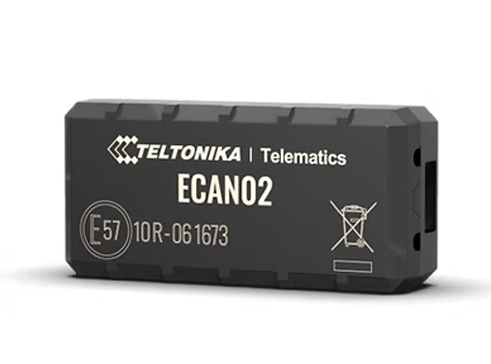

ECAN02
ECAN02
New-generation warranty-friendly CAN adapter
Contactless CAN Reading
Reads up to 100% of available CAN data in 1,000 kb/s
LED Indicators
Know exactly if you installed the adapter properly and when data is being transmitted
Warranty-friendly
No physical wire connections, original wires remain intact to preserve vehicle warranty
Upgraded Casing
New, stronger, and more robust casing improves device longevity
Easy Installation
Simple to install and operate with automatic signal level and speed adjustment
Vehicle Data Collection
Collects vehicle data from CAN bus without damaging wires through isolation
Specification
| Power | |
| Input voltage range | 10-30 V DC |
| Power consumption | At 12 V < 1.7 mA (Standby) At 12 V < 7.5 mA (Working) |
| Physical specification | |
| Dimensions | 39.0 × 19.0 × 12.0 mm (L × W × H) |
| Weight | 16g |
| Operating environment | |
| Operating temperature | -40°C to +85°C (without battery) |
| Operating humidity | Max 85% non-condensing |
| Suitable for | |
| Supported by | LV-CAN200, ALL-CAN300, FMX650, FMB140, FMB240, FMX150, FMX250 |
| Technical data | |
| Features | ECAN02 collects vehicle data from CAN bus without damaging the wires |
| Power source | Powered from on-board power source |
| Reading method | Reads signals through the isolation of CAN bus wires |
| Operation | Easy to install and operate |
| CAN-BUS speeds | From 33 to 1000 kb/s |
| Signal adjustment | Automatically adjusts signal level and speed |
Features
- Contactless CAN reading - reads up to 100% of available CAN data in 1,000 kb/s
- LED indicators for installation verification and data transmission status
- Warranty-friendly design with no physical wire connections
- Upgraded stronger and more robust casing for improved longevity
- Collects vehicle data from CAN bus without damaging wires
- Powered from on-board power source
- Reads signals through isolation of CAN bus wires
- Easy to install and operate
- Supports CAN-BUS speeds from 33 to 1000 kb/s
- Automatically adjusts signal level and speed
