Eurosens_DDS_BT

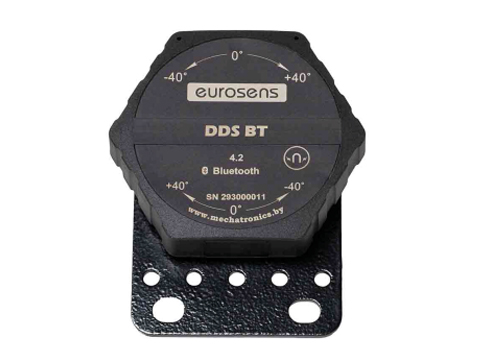

Eurosens DDS BT
Wireless digital displacement sensor for leaf spring suspension
Bluetooth axle load sensor eurosens® DDS BT is used to measure axle load in vehicles with leaf spring suspension and uses the leaf spring deformation (suspension deflection) measurement method. The calibration procedure of the sensor eurosens® DDS BT is performed on a smartphone via an Android app.
BLE 4.2 Interface
Wireless communication using advertising packets
200m Range
Transmission range up to 200 meters
IP67 Protection
Protected against dust and temporary immersion
Wide Temperature Range
Operates from -40°C to +85°C
Angle Measurement
Measures angles from -40° to +40°
3.6V Power
Powered by built-in ER14505 battery
SPECIFICATION:
| Power supply | 3.6 V |
| Output interface | BLE 4.2 |
| Transmission mode | Advertising packets |
| Transmission range, up to | 200 m |
| Measured angles, range | -40°...40° |
| Ambient operating temperature | -40 ...+85 °C |
| Ingress protection rating | IP 67 |
KEY FEATURES:
- Autonomous sensor with long range of communication and high accuracy of data reading.
- Powered by a built-in ER14505 battery which provides up to 5 years of sensor operation.
- Compatibility with popular GPS trackers (Navtelecom, Teltonika, Galileosky, etc.)
- One sensor can support up to 3 calibration tables simultaneously.
