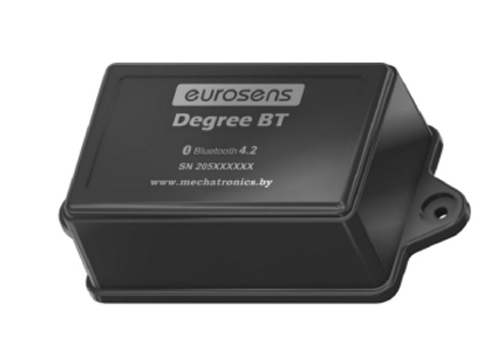

Eurosens Degree BT
Eurosens Degree BT
Wireless tilt angle sensor
Orientation sensor and data logger that measures the angular position of parts and mechanisms relative to the gravity vector and transmit this data over a 2.4 GHz radio channel Bluetooth Low Energy (BLE). The sensor is self-powered from a built-in battery.
3-Axis Measurement
Measures angles of axis X, Y, Z relative to gravity vector
Event Detection
Recognizes chains of events separated by predefined time intervals
Wireless Connectivity
Bluetooth Low Energy (BLE) 2.4 GHz radio transmission
Temperature Measurement
Available in modification with index T
Data Logging
Non-volatile memory stores events with time and date stamps
Standalone Operation
Works independently with internal memory and built-in battery
SPECIFICATION
| Error of tilt angle measurement | ±1° |
| Temperature range | -40°C to +85°C |
| Distance of wireless connection | 10 m |
| Protection class | IP 67 |
| Power source | Built-in battery |
| Wireless protocol | Bluetooth Low Energy (BLE) |
| Frequency | 2.4 GHz |
KEY FEATURES
- Measures 3 angles of axis X, Y, Z
- Each axis can be assigned with limit values for event detection
- Sensor recognizes chains of events separated by predefined time intervals
- Temperature measurement available (modification with index T)
- Event type, time and date stored in non-volatile memory (modifications with index M)
- Sends X,Y,Z angles, event counts and chain completions to GPS tracker via BLE
- Customized sleep mode for power optimization
- Can work as stand-alone device without GPS tracker using internal memory
