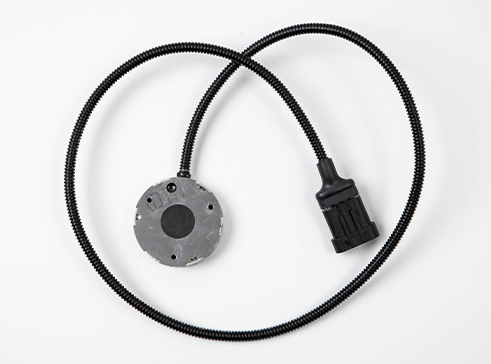

Eurosens Dizzi
Eurosens Dizzi
Liquid level sensor
Ultrasonic level sensors Eurosens Dizzi is used for non-contact (non-invasive) level measurement of acoustically transparent liquids. Measurement is done by external echolocation through the bottom of tank.
Non-contact Measurement
External echolocation through tank bottom without modification
Explosion-proof
Certified: 0ExialICT6Ga,[ExiaGa]llC for hazardous environments
Multiple Interfaces
RS485, 0-5V voltage, 500-1500 Hz frequency output options
External Installation
All components placed outside the tank - no modifications needed
Wide Compatibility
Measures any liquid including aggressive, explosive, and food liquids
Smart Diagnostics
Self-diagnostic algorithm provides stable, reliable data
Specification
| Technical Specifications | |
| Power voltage | 9 – 30 V |
| Max. thickness of the tank wall | 0 – 5 mm |
| Resolution (in static condition) | 0.1 mm |
| Range of measurement | 20 – 3000 mm |
| Error (in static condition) | 0.1 mm |
| Max temperature of tank surface | 100 °C |
| Reverse polarity protection | Yes |
| Temperature range | -40 – +85 °C |
| Output interfaces | RS-485 |
| Digital protocols | LLS, Modbus |
| Protection class (acoustic probe) | IP 67 |
| Seal rating | IP 67 |
Features
- No tank modification required - all sensor components are placed outside the tank
- Ideal for measuring aggressive, explosive, food liquids, and high-pressurized liquids
- Can measure level of any liquid, including liquefied gas
- Smart self-diagnostic algorithm provides stable data without interruption
- Explosion-proof certified: 0ExialICT6Ga,[ExiaGa]llC
- Multiple output interfaces: RS485, voltage 0-5V, frequency 500-1500 Hz
- External installation with acoustic probe pressed to tank surface
