FTM6520-1W
FTM6520-1W

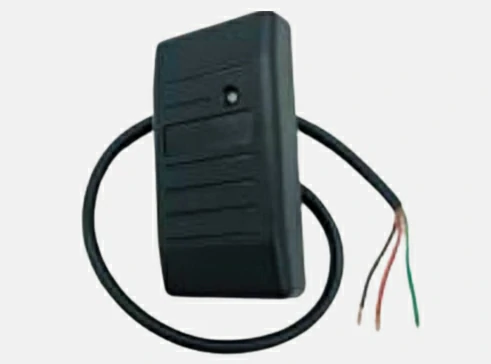

125 Khz Access Control Reader
125 Khz Frequency
Low-frequency RFID technology for reliable access control
1-Wire Communication
One wire communication interface for easy integration
IP65 Water Resistant
Water Resistant case with improved Water-resistant connector IP65. Suitable for installation in a wide variety of indoor and outdoor environments.
Voltage Range
Card reader accepts 9-12V DC voltage, can be used with almost all the controllers on the market.
Visual/Audio Feedback
A LED light, A buzzer
Multiple Applications
Access control, Attendance application, Ladder control, Parking lot, Barrier gate/ rapid-open gate
Specification
| General Specifications | |
| Frequency | 125 KHz |
| Support card | EM4200, TK4100 and compatible card |
| Interface | 1-Wire / iButton |
| Read Distance | > 5cm (Card reading distance depends on card packaging and surroundings) |
| Indicator | A LED light, A buzzer |
| Power Supply | DC +9V ~ +12V(±5%) |
| Current | <60mA |
| Baud Rate | 9600 |
| Storage Temperature | -20℃~70℃ |
| Operating Temperature | -10℃~50℃ |
| Dimension | 80mm x 43mm x 13mm |
| Humidity | 0 ~ 95% |
| Pin Definition | |
| RED | DC 9-12V |
| BLACK | GND |
| GREEN | 1-Wire bus |
Applications
- Access control
- Attendance application
- Ladder control
- Parking lot
- Barrier gate/ rapid-open gate
Instruction
FTM6520-1W is professional 125 KHz wall-mounted card reader with 1-Wire interface. The reader is suitable for wall mounting and characterized by easy installation, stable performance, practical and beautiful, and are ideal choice for access control system and related control systems.
