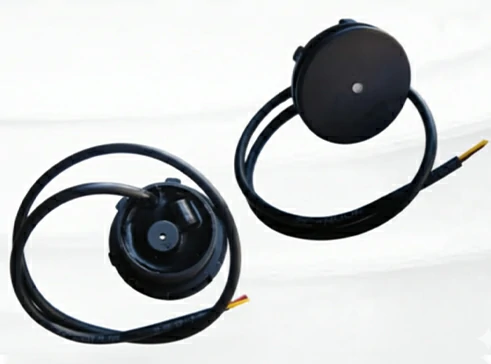

FTM6523-1W
FTM6523-1W
125 Khz Access Control Reader
125 Khz Frequency
Low-frequency RFID technology for reliable access control
1-Wire Communication
Simple single-wire interface for easy integration with controllers
IP65 Water Resistant
IP65 rated water resistant case with improved water-resistant connector. Suitable for installation in a wide variety of indoor and outdoor environments.
Wide Voltage Range
Card reader accepts 9-30V DC voltage, can be used with almost all the controllers on the market.
Visual/Audio Feedback
A LED light, A buzzer
Multiple Applications
Access control, Attendance application, Ladder control, Parking lot, Barrier gate/ rapid-open gate
Specification
| General Specifications | |
| Frequency | 125KHz |
| Support card | EM4200, TK4100 and compatible card |
| Interface | 1-Wire / iButton |
| Read Distance | > 5cm (Card reading distance depends on card packaging and surroundings) |
| Indicator | A LED light, A buzzer |
| Power Supply | DC +9V ~ +30V(±5%) |
| Current | <60mA |
| Baud Rate | 9600 |
| Storage Temperature | -20℃~70℃ |
| Operating Temperature | -10℃~50℃ |
| Dimension | 37.3mm (dia) x 20mm (height) |
| Humidity | 0 ~ 95% |
| Pin Definition | |
| RED | DC 9V-30V |
| BLACK | GND |
| GREEN | 1-Wire bus |
| Protocol | |
| All 1-Wire devices, including iButton devices, contain an 8-byte unique registration number. The computation begins with the MSB of the 64-bit. This 1-Wire Data consists of an 8-bit CRC, a unique 48-bit serial number and an 8-bit family code. The family code is fixed 0x01. | |
| CRC | 2 HEX |
| UNIQUE SERIALDATA | 12 HEX |
| Family Code | 2 HEX |
Applications
- Access control
- Attendance application
- Ladder control
- Parking lot
- Barrier gate/ rapid-open gate
Instruction
FTM6523-1W is professional 125KHz wall-mounted card reader with one wire interface.
