iButton Reader
iButton Reader

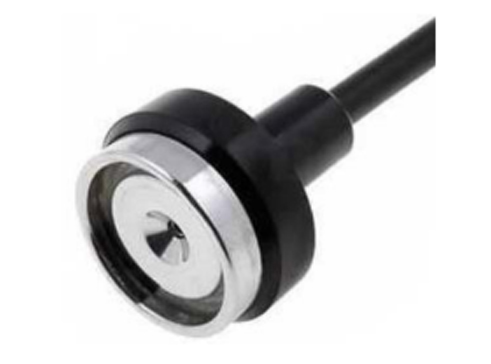

Transport Telematics iButton Reader with Multiple Connection Options
Multiple Connection Options
Available in 2-pin or 5-pin connection configurations
LED Indication
Optional LED indicators for visual status feedback
Compact Design
Small form factor: 22 × 11 mm with 400mm cables
1-Wire Protocol
Supports standard 1-Wire communication protocol
Dual LED Options
Red and green LED indicators with 20mA DC at 2.7V rating
Industrial Applications
Designed for transport telematics and industrial use cases
Specification
| Physical Properties | |
| Dimensions | 22 × 11 mm |
| Cable Length | 400 mm |
| Connection Options | 2-pin or 5-pin |
| LED Indicators | Optional |
| 2-Pin Reader Configuration | |
| Pin 1 | 1-Wire GND |
| Pin 2 | 1-Wire DATA |
| 5-Pin Reader Configuration | |
| Pin 1 | + red LED |
| Pin 2 | 1-Wire DATA |
| Pin 3 | 1-Wire GND |
| Pin 4 | GND LEDs |
| Pin 5 | + green LED |
| LED Specifications | |
| Maximum Current | 20 mA DC |
| Voltage | 2.7V |
| Colors | Red and Green |
Applications
- Transport Telematics Systems
- Vehicle Access Control
- Driver Identification Systems
- Fleet Management Solutions
- Industrial Authentication
- Asset Tracking
