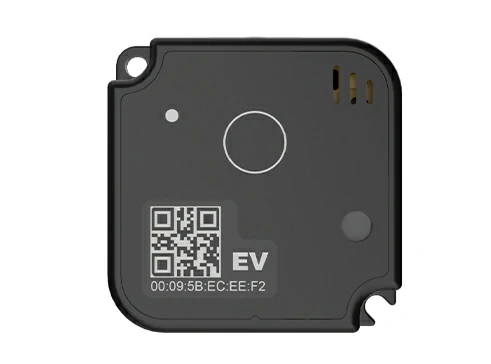

K7800P
K7800P
Multifunctional BLE Sensor with Door Detection
Bluetooth Connectivity
BLE 4.2 technology with 50m transmission distance in open areas
Multiple Sensors
Built-in temperature, humidity, Hall door magnetic, and light sensors
IP65 Protection
Protected against dust and water jets for various environments
Long Battery Life
3 years (3000ms broadcast interval) or 2 years (2000ms broadcast interval)
Door Detection
Hall sensor detects door opening/closing status with magnetic fittings
Light Sensing
Detects ambient light changes for open box testing in opaque containers
Specification
| Physical Specifications | |
| Size | 40*40*15 mm |
| Protection Rating | IP65 |
| LED | Indicates working status |
| Side Button | Switches operating mode |
| Front Button | Not available |
| Environmental Specifications | |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 60°C |
| Communication Specifications | |
| Transmission Distance | 50m (Open area) |
| Frequency | 2.4 GHz, supports BLE 4.2 |
| Power Specifications | |
| Operating Time | 3 years (3000ms broadcast interval) 2 years (2000ms broadcast interval) |
| Built-in Sensors | |
| Light Sensor | Detects changes in ambient light for open box testing |
| Hall Sensor | Detects door opening/closing status with magnetic fittings |
| Environment Sensor | Temperature and humidity detection |
| Temperature Performance | |
| Range | -20℃~+70℃ |
| Accuracy | 10℃~50℃, error: ±0.5℃; ≤10℃ or ≥50℃, error: ±2℃ |
| Humidity Performance | |
| Range | 0%RH~100%RH |
| Accuracy | 0%RH~90%RH, error: ±2.5%RH; ≥90%RH, error: ±3.5%RH |
| Packing List | |
| K7800P | 1 PCS |
| Hall Effect door sensor | 1 PCS (Optional) |
Operating Guidelines
| Device Operations | |
| Checking status | Short press power button - indicator on for 1s then off means powered on |
| Power ON | Press and hold power button for 3 seconds - LED lights for 3 seconds then goes out |
| Power OFF | Press and hold power button for 3 seconds while powered on - LED blinks three times |
| Activate Bluetooth | Press button 5 times within 5s to activate Bluetooth connection |
Certification
FCC Compliance Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
