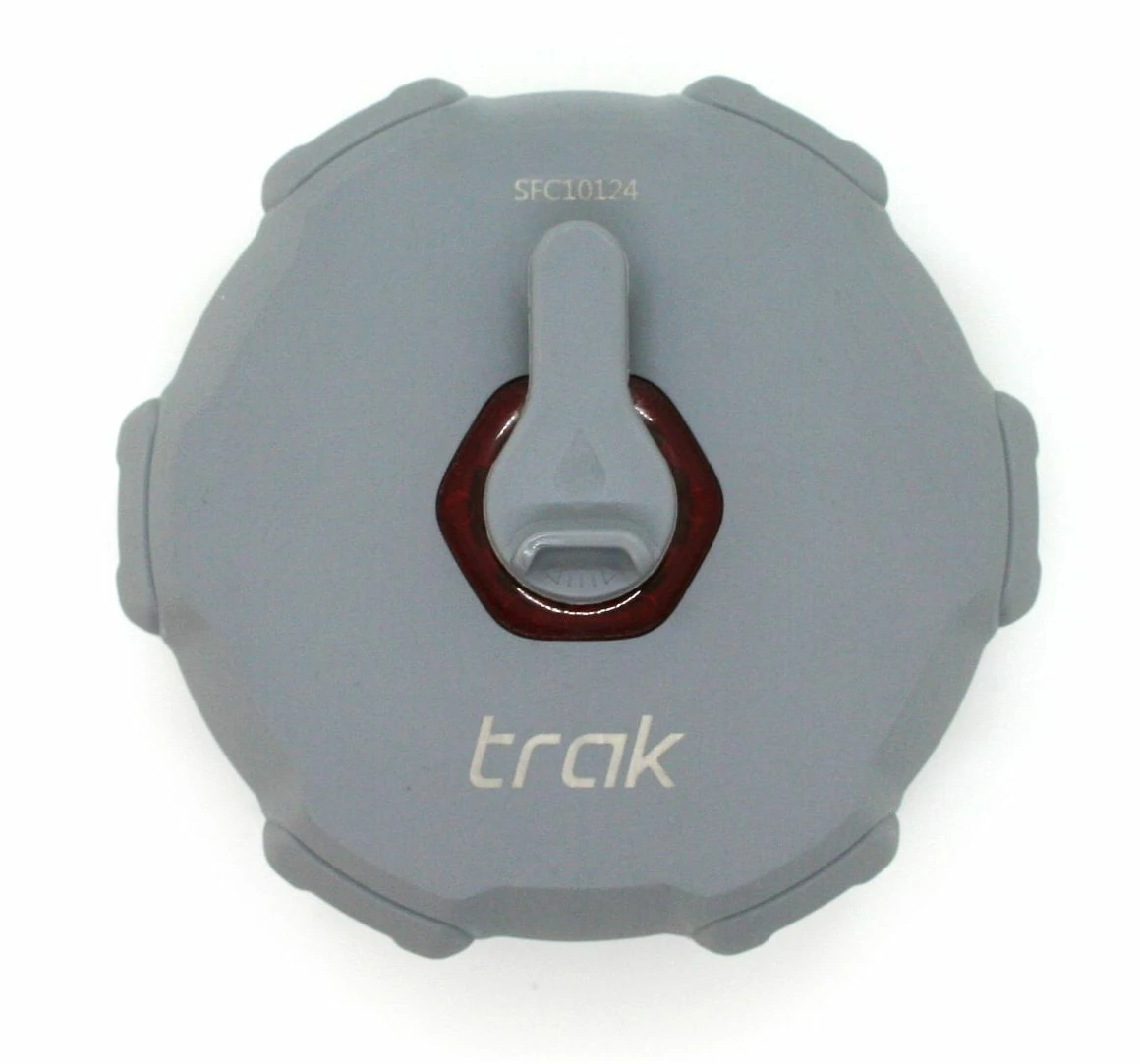

TR21
Smart Fuel Cap
Model TR21
5-Year Battery Life
LS14500 - 2600mAh battery with 5 years lifespan
BLE 5.2 Communication
Nordic nRF52811 with pairing mode and beacon mode available
Tamper Detection
Advanced security with 3 different sensors for event detection
Durable Construction
PA6-GF30 material with FPM sealing and 5 lamella lock
Wide Temperature Range
Operates from -40°C to +80°C in various environments
Real-time Monitoring
10sec ping interval with immediate event reporting
Specification
| Physical Specifications | |
| Model | TR21 |
| Dimensions | Ø135mm x 67.5mm |
| For Fuel Necks | Ø105 Outer / Ø80mm Inner |
| Height From Fuel Neck | 37.5mm |
| Weight | 400gr |
| Material | PA6-GF30 |
| Sealing Material | FPM |
| Lock | 5 Lamella |
| Lock Barrel Salt Spray Test | 96h (ASTM b117) |
| Environmental Specifications | |
| Temperature | -40°C +80°C |
| Power Specifications | |
| Battery | LS14500 - 2600mAh |
| Battery Lifespan | 5 years |
| Communication Specifications | |
| Communication | BLE 5.2 - Nordic nRF52811 Pairing Mode Available Beacon Mode Available |
| Ping Interval | 10sec |
| Event Interval | Immediate |
| Event Types | Cap Open / Close Tamper Detection |
| LED Indication | 20ms-10sec Interval |
| Sensor Methodology | 3 Different Sensors |
| Max. Antenna Output Power | 4dBm |
| RF Receiver Accuracy | -97dB |
| Certification | |
| Certification | CE |
| Test Standards | EN55032 EN61000-4-2 EN61000-4-8 EN61000-4-3 |
