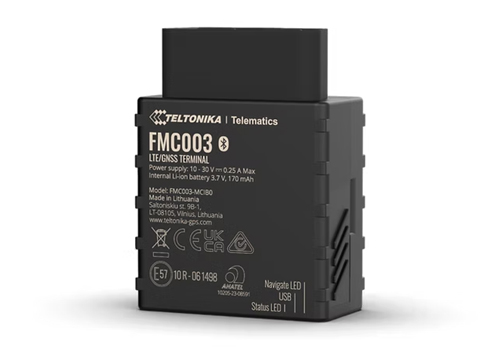

FMC003
FMC003
4G LTE Cat 1 tracker with OBD OEM data reading
OBD OEM Data
Get real odometer & real fuel level data from vehicle's OBD system
Plug & Play
Simply plug the device in OBD-II port and start tracking
EV Support
Bringing new value with more than 150 supported vehicles in the EV market
Vehicle Support
Know in advance what vehicle parameters are available to optimize fleet operations
4G LTE Connectivity
Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network
Multi-GNSS
GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS support
Specification
| Module Name | Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA |
| Technology | LTE(Cat1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channels, 99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | <2.5m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | <1s |
| Warm start | <25s |
| Cold start | <35s |
| Cellular Technology | LTE Cat 1/GSM |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G LTE bands | SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Transmit power | Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20+2dBm Class 3 for LTE-TDD: 23+2.7dBm Class 3 for LTE-FDD: 23+2.7dBm |
| Data support | SMS (text/data) |
| OBD Support | OBD OEM data reading |
| EV Support | 150+ supported electric vehicles |
| Installation | Plug & play OBD-II connection |
