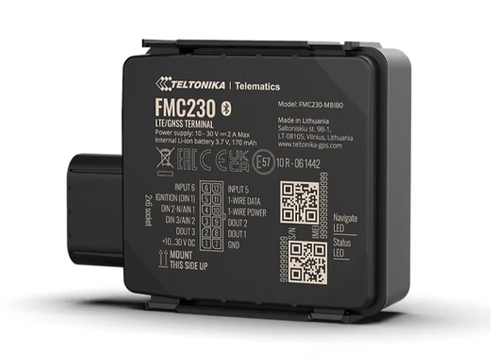

FMC230
FMC230
Water-resistant 4G LTE Cat 1 tracker with flexible inputs

IP67 Protection
Robust IP67-rated casing provides trusted protection against dust and resistance to water
Tool-Free Installation
Innovative click-type two-phase closing with no additional tools needed
Flexible Cabling
Standard and U-type cable options available to ensure easy and fast installation
Extended Usage
Bluetooth® LE-based wireless connection of external devices including Low Energy beacons and sensors
4G LTE Connectivity
Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network
Multi-GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS support
Specification
| Module Name | FMC230-MBIBO0: MeiG SLM320-E with Teltonika TM2500 FMC230-MCIBO: MeiG SLM320-LA with Teltonika TM2500 |
| Technology | LTE(Cat1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE |
| GNSS Systems | GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS |
| Position Accuracy | <2.5m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot Start | <1s |
| Warm Start | <25s |
| Cold Start | <35s |
| 2G Bands | FMC230-MBIBO0: GSM: B2/B3/B5/B8 FMC230-MCIBO: GSM: B2/B3/B5/B8 |
| 4G LTE Bands | FMC230-MBIBO0: LTE FDD: B1/B3/B7/B8/B20/B28, LTE-TDD: B38/B40/B41 FMC230-MCIBO: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD: B40 |
| Data Transfer | LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data Support | SMS (text/data) |
| IP Rating | IP67 |
| Bluetooth | 4.0+LE |
| Tracking Channels | 33 tracking channels, 99 acquisition channels |
| Tracking Sensitivity | -165 dBM |
