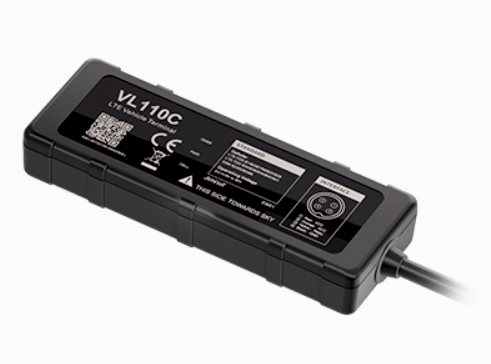

VL110C
VL110C
LTE Vehicle Terminal
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback
9-90V Operating Voltage
Wide operating voltage range suitable for various vehicles and industrial equipment
IP65 Protection
Water and dust resistance ensures optimal performance in tough conditions
Remote Cut-Off
Immobilize vehicles by cutting off power/fuel supply via installed relay
Battery Protection
Disconnect from vehicle power and operate on internal battery when voltage drops critically
Jamming Detection
Detects GNSS/LTE jamming and triggers alarms or fuel/power cutoff
Specification
| Positioning & Location | |
| GNSS Systems | GPS, Beidou, GLONASS, Galileo |
| Positioning Accuracy | 2.5m CEP |
| Tracking Sensitivity | -165 dBm |
| Hot Start | <1s |
| Warm Start | <25s |
| Cold Start | <35s |
| Cellular Communication | |
| Network Technology | LTE Cat 1 with 2G GSM fallback |
| LTE Bands | Multiple band support for global coverage |
| Data Transfer | LTE: Max 10Mbps (DL)/Max 5Mbps (UL) |
| Data Support | SMS, TCP/IP, UDP |
| Power Management | |
| Operating Voltage | 9-90V DC wide range |
| Battery Protection | Automatic switch to internal battery |
| Internal Battery | Backup power when vehicle battery is critical |
| Environmental Specifications | |
| Protection Rating | IP65 water and dust resistance |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Security Features | |
| Remote Control | Fuel/power cut-off via relay |
| Jamming Detection | GNSS/LTE jamming detection with configurable responses |
| Anti-Theft | Vehicle immobilization capabilities |
| Physical Specifications | |
| Dimensions | 86mm × 46mm × 24mm |
| Weight | Approx. 65g |
| Installation | Easy installation |
| Vehicle Compatibility | |
| Vehicle Types | Cars, trucks, industrial equipment, scooters, golf carts |
| Applications | Fleet management, vehicle security, asset tracking |
APPLICATIONS
- Fleet Management
- Vehicle Security
- Asset Tracking
- Industrial Equipment Monitoring
