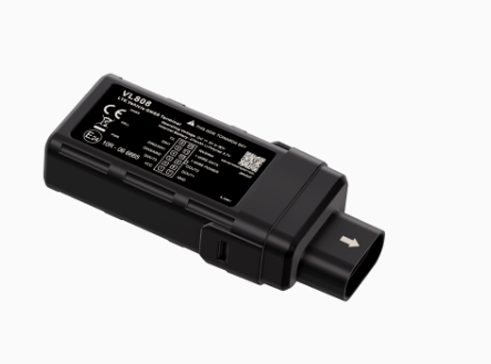

VL808
VL808
4G LTE GPS Tracker with Backup Battery
Backup Battery
Built-in 1000mAh rechargeable battery for continuous tracking during power loss
4G LTE Connectivity
Fast and reliable 4G LTE network connection with global band support
Multi-system Positioning
GPS, GLONASS, Galileo, and BeiDou support for accurate global positioning
Wide Voltage Input
Supports 9-90V DC input, suitable for various vehicles and applications
IP65 Waterproof
Dust-tight and protected against water jets, suitable for harsh environments
Multiple Alarms
Real-time alerts for SOS, vibration, geofence, low battery, and more
Specification
| General Information | |
| Product Model | VL808 |
| Dimensions | 86mm × 46mm × 24mm |
| Weight | Approx. 65g |
| Positioning & Navigation | |
| GNSS Systems | GPS, GLONASS, Galileo, BeiDou |
| Positioning Accuracy | 2.5m CEP |
| Cold Start | <35s |
| Warm Start | <25s |
| Hot Start | <1s |
| Communication | |
| Network Technology | 4G LTE Cat 1 |
| LTE Bands | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B85 |
| Data Transfer | Download: 10Mbps, Upload: 5Mbps |
| Fallback Network | 2G GSM (850/900/1800/1900MHz) |
| Power Management | |
| Operating Voltage | 9-90V DC |
| Backup Battery | 1000mAh rechargeable lithium battery |
| Standby Time | Up to 360 hours (with backup battery) |
| Power Consumption | Sleep mode: <2mA, Working mode: <100mA |
| Environmental Specifications | |
| IP Rating | IP65 (Dust-tight and protected against water jets) |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Features & Interfaces | |
| SOS Button | Supported |
| Vibration Sensor | Built-in |
| Geofence | Supported |
| Low Battery Alert | Supported |
| Remote Listening | Supported via built-in microphone |
| Data Protocol | TCP/IP, UDP, HTTP, MQTT |
| Certifications | |
| Certifications | CE, FCC, RoHS |
Applications
- Vehicle Tracking & Fleet Management
- Personal & Asset Security
- Rental Equipment Tracking
- Logistics & Transportation
- Construction Equipment Monitoring
- Motorcycle & Scooter Security
Package Contents
- VL808 GPS Tracker Unit
- Installation Cable Set
- User Manual
- Mounting Accessories
