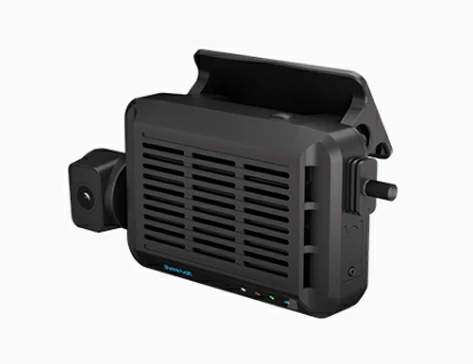

JC371 Multi-Channel AI Dash Cam
JC371
Next Gen Multi-Channel AI DashCam
The JC371, designed specifically for commercial vehicles, is a powerful remote video monitoring terminal that supports up to 3 cameras and incorporates advanced visual AI algorithms like ADAS and DMS. Its built-in antenna system simplifies wiring, delivering enhanced economy, convenience, visibility, and intelligence to fleet managers. The JC371 keeps tabs on following distance, lane keeping, and driver alertness, ensuring that drivers and fleet managers receive instant in-cab alerts for potential hazards, making the road safer. It also has emergency alert features like a panic button and uploads relevant video clips to the cloud for storage. A comprehensive management solution, the JC371 is perfect for managing commercial fleets in public transportation, logistics, hazardous materials, and ride-sharing services.
Video Surveillance
Powerful LTE connectivity enables the live monitoring of the vehicle's interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.
3-Channel 1080P HD Recording
The device supports up to three 1080P cameras, offering clear and comprehensive monitoring of the vehicle and its surroundings. The built-in STARVIS camera delivers exceptional clarity in low-light conditions with high color accuracy. Flexible configurations include a tamper-resistant cover, a cabin-view USB camera, and external cameras to meet various needs.
Visual AI Algorithms
The device uses a variety of AI algorithms, such as ADAS, DMS, Face Recognition and Seatbelt Detection to provide tools that help improve road safety, driver safety and compliance.
Multiple Alerts
Record and upload video clips or still images of customizable events such as speeding and SOS button activation.
Expanded Storage
The device offers stable and HD video recording with 128GB of built-in eMMC storage and supports memory expansion via a TF card up to 256GB. The 128GB eMMC delivers fast read and write speed, excellent reliability, strong privacy protection, and a lifespan exceeding 10 years.
Specification
| Cellular | |
| Technology | 4G LTE Cat 4, 3G (WCDMA), 2G (GSM) |
| Frequency JC371-EU | FDD-LTE: B1/B3/B5/B7/B8/B20/B28A TDD-LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| Frequency JC371-NA | FDD-LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| Frequency JC371-LA | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD-LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
| GNSS | |
| Positioning system | GPS, BDS, AGPS |
| Camera | |
| Camera support | 1080P x 3 |
| Video format | .ts |
| Power | |
| Input voltage | DC 9–30V |
| Operating environment | |
| Operating temperature | –20°C to +70°C |
| Storage temperature | –30°C to +85°C |
| Physical specification | |
| Dimensions | 118.0 x 77.0 x 31.0mm |
| Weight | 283g |
| Interface | |
| LED indication | Red (Power), Blue (Cellular), Green (GNSS), White (AI) |
| SIM | Nano-SIM |
| Internal memory | EMMC 128GB |
| External memory | TF card (up to 512GB) |
| USB | Type-C |
| WiFi | 2.4GHz, Support AP Mode/STA Mode/WiFi Direct |
| Bluetooth | N/A |
| Microphone | Support |
| Speaker | Support |
| Digital I/Os | 2*SOS, 2*Relay, 2*Reserved inputs |
| Analog I/Os | N/A |
| Serial ports | 2*TTL |
| Sensor | 6-Axis accelerometer |
| Feature | |
| ADAS | FCW, HMW, LDW, PCW |
| DMS (Optional) | Phone use, Smoking, Distraction, Yawning, Eyes closed, No face detected |
| Configuration support | GPRS, SMS, Memory card, APP |
| Firmware update | USB Cable, Memory card, OTA |
| Certification | FCC, PTCRB, CE |
APPLICATIONS
- Logistics Service
- Hazmat Trucking
- Taxi Service
