JC181 Dual-Channel Dashcam
JC181
Dual-Channel Dashcam
The JC181 is a compact video telematics device that makes it easy to remotely manage your en-route fleets. It adds visibility to your fleet, along with powerful LTE connectivity and GNSS capability, and can record and store video footage and images on the device. You can watch live video, play back historical footage, and retrieve critical evidence when needed, from anywhere, at any time. By integrating video technologies, it helps ensure the authenticity, timeliness, and reliability of fleet management, making it an appropriate choice for light vehicles.

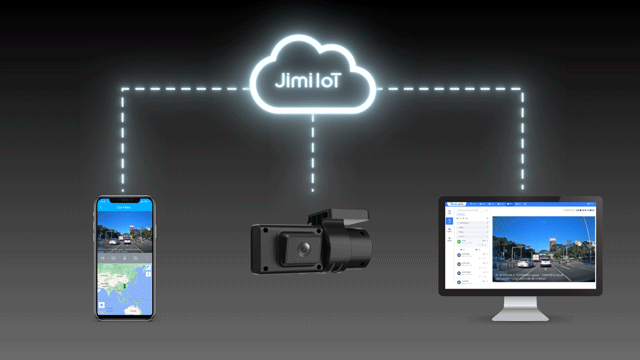

Video Surveillance
Powerful LTE connectivity enables the live monitoring of the vehicle's interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.
Dual-Channel Recording
Simultaneously monitor the road ahead and what happens in the cab in real-time through the two on-device lenses, with no peripheral camera needed.
Built-in GPS Logger
The video recorder can be used as a tracker to locate the vehicle and stamp data such as vehicle speed, coordinates, time, and more on the images or video clips.
Compact Size
The small form factor allows discreet installation behind the rearview mirror without blocking the driver's view.
Remote Vehicle Immobilization
Enable you to cut off the fuel/power to the vehicle moving under 20km/h using Tracksolid Pro, which is useful if your fleet vehicle has been stolen.
Specification
| Network | |
| Standard | 4G LTE Cat.1 |
| WiFi | 2.4GHz, Support WiFi Direct |
| Band Latin American Version | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 |
| Band Eurasian Version | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
| Camera | |
| Front Camera (Main) | 1920×1080/30FPS/F2.2/Full color/110° (HFoV) |
| Sub Camera | 640×360/10FPS/F2.8/Full color in daytime & monochrome in dim light/100° (HFoV) |
| Video Format | .mp4 |
| Configuration | |
| GNSS | GPS/BDS/AGPS |
| Sensor | 3-axis |
| Microphone | Support |
| Speaker | Support |
| Interface | Type-C USB*1, Relay*1 |
| Memory | Support TF Card (Up to 128GB) |
| SIM Card Type | Nano |
| LED Indication | Red (Power), Green (GNSS), Blue (Cellular) |
| Others | |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Voltage | DC 9–30V |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –30°C to +85°C |
| Device Weight | 143g |
| Device Dimension | 118*46.5*43.5mm |
APPLICATIONS
- Taxi Service
- Online Ride-hailing
- Auto insurance
