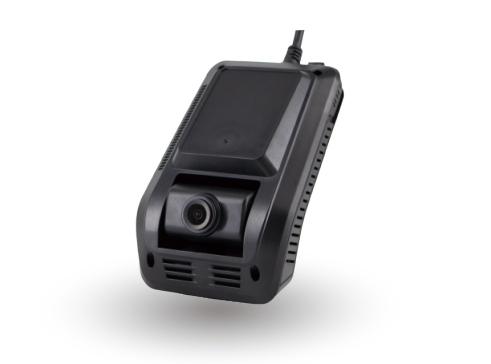

MC202A 4G Built-in One Channel AI Dash Cam
MC202A is an advanced dash camera with a built-in AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
Key Features
Reliable Witness for Accident
High speed 4G network enable Photos, videos and GPS position as required upload to the cloud for later evidence review purposes.
Expanded storage
1 TFCard for video storage, Max 512GB
1-Ch Recording with ADAS
Built-in AI dash cam with front view, 1080P@30fps for clear and smooth recording, providing double protection for a safer driving environment.
Extension Interface
1 RS232 interface to connect sensors such as fuel sensor temperature sensor, RFID reader and 1 panic button.
Remote Video&Audio Surveillance
MC202A offers 1080P HD resolution, microphone, and speaker. Enjoy clear live video and monitor your car remotely, anytime, anywhere.
Easy to use
Mobile APP, PC, and software platform for video preview and parameter configuration are provided.
Product specifications
Hardware
| Feature | Details |
|---|---|
| Operation system | Linux |
| CPU | ARM Dual-Core processor@1.5GHz |
| Memory | DDR3 2Gb + TF card(512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | ✓ |
| Mic | ✓ |
| Sim card | Micro sim |
| USB | ✓ |
| LED | Red(Power), Green(Internet&video recording) |
| I/O ports | 2 digital input,1 digital output, 1 RS232 |
Camera
| Feature | Details |
|---|---|
| Front (Built-In) | 1080P ADAS |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL , NTSC |
| Video resolution | Total 1080P at 100 fps |
| Compression format | G.711A |
Network
| Feature | Details |
|---|---|
| 4G LTE Cat.1 | |
| MC202A-ASIA | FDD LTE: B1/B3/B5/B7/B8/B20/B28 |
| TDD LTE: B38/B40/B41 | |
| WCDMA: B1/B5/B8 | |
| GSM: 850/900/1800/1900MHz | |
| WiFi | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808–2011, JT/T808–2019 |
| JT/T1076–2016, JT/T1078–2016 |
Others
| Feature | Details |
|---|---|
| Power supply | DC: +9V ~ +36V |
| Operation Temperature | –20℃ to +70℃ |
| Operation Humidity | 20% to 80% |
| Net weight | 240g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC |
