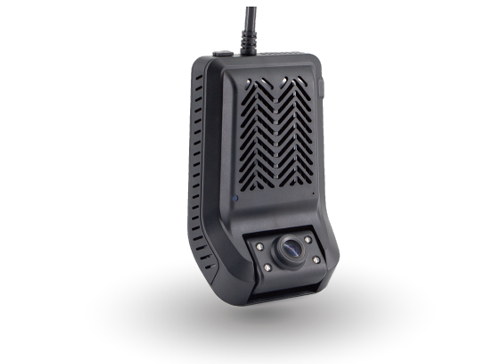

MC202N 4G Built-in Dual Channel AI Dash Cam
MC202N is an advanced AI-powered dash cam designed for enhanced vehicle safety and fleet
management. It features real-time driving behavior monitoring, including lane departure, collision
warnings, and fatigue detection. The MC202N, a super updated version compared with the MC202,
introduces the Power Disconnection Alert, ensuring uninterrupted video recording by switching to
backup power during power disruptions. With real-time alerts and enhanced security, the MC202N
provides fleet operators with reliable, continuous protection for vehicles and assets.
Key Features
Power Disconnection Alert
Seamlessly records and sends alerts, ensuring data safety and immediate notifications of power disruptions.
2-CH Recording with ADAS and DMS
Dual AI dash cam with front and cabin view, 1080P+1080P@30fps, ensuring clear, smooth recordings and double protection.
Remote Video & Audio Surveillance
1080P HD, built-in mic & speaker. Remote car monitoring anytime, anywhere.
Reliable Witness for Accident
High-speed 4G allows for cloud uploads of photos, videos, and GPS data for evidence review.
Extension Interface
Includes 1 RS232 port for sensors like fuel or temperature sensors, RFID reader, and an SOS button.
Expanded Storage
1TF card slot for video storage, supporting up to 512GB capacity.
Product Specifications
Hardware
| Feature | Details |
|---|---|
| Operation System | Linux |
| CPU | Dual-core CPU+NPU@1.0T |
| Memory | DDR 2G + TF card (Max.512G) |
| GNSS | GPS+BDS (with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | ✔ |
| Mic | ✔ |
| Sim card | Micro sim |
| USB | ✔ |
| LED | Red (Power), Green (Internet & video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
Camera
| Feature | Details |
|---|---|
| Front | 1080P ADAS/116° (HFoV) |
| Cabin | 1080P IR night vision DMS/116° (HFoV) |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1, Total 1080P at 60 fps |
| Compression format | G.711A |
Network
| Feature | Details |
|---|---|
| 4G LTE Cat.1 | MC202N |
| FDD LTE | B1/B3/B5/B8 |
| TDD LTE | B34/B38/B39/B40/B41 |
| WiFi | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808–2011, JT/T808–2019, JT/T1076–2016, JT/T1078–2016 |
Others
| Feature | Details |
|---|---|
| Power supply | DC: +9V ~ +36V |
| Operation Temperature | –20℃ to +70℃ |
| Operation Humidity | 20% to 80% |
| Net weight | 252g |
| Dimension | 126mm*79mm*63mm |
| Certification | CE/FCC/ICASA/RoHS |
