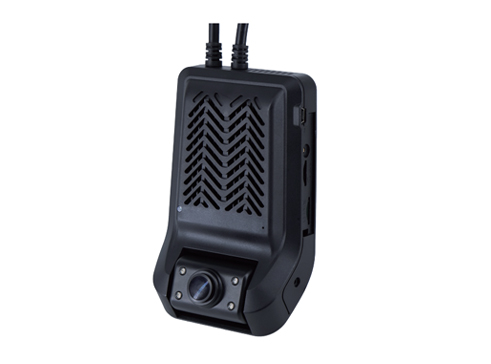

MC401X 4G Quad Channel AI Dash Cam
MC401X is an advanced dash camera with 4 channel lens supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and improper driver behavior such as using mobile phones, fatigue driving detection, smoking detection, lens covered detection to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
Key Features
4-CH Recording with DMS and ADAS
The device has 2 AI dash cameras and 2 remote cameras capturing clear views, ensuring double safety while driving.
Expanded storage
1 TF card for video storage, Max. 512GB.
Reliable Witness for Accident
High speed 4G network enable photos, videos and GPS position as required upload to the cloud for later evidence review purposes.
Extension Interface
1 RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader, 2 digital input and 1 digital output.
Remote Video and Audio Surveillance
MC401X offers 1080P HD resolution with microphone & speaker, enabling clear live video for remote car monitoring.
Easy to use
Provide mobile APP, PC, and software platform for video preview and parameter configuration.
Product specifications
Hardware
| Feature | Details |
|---|---|
| Operation system | Linux |
| CPU | Dual-core CPU + NPU@1.0T |
| Memory | DDR 2G + TF card(Max.512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | ✓ |
| Mic | ✓ |
| Sim card | Micro SIM |
| USB | ✓ |
| LED | Red(Power), Green(Internet&video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
Camera
| Feature | Details |
|---|---|
| Front | 1080P ADAS/125*(HFoV) |
| Cabin | 720P IR night vision DMS /105*(HFoV) |
| External 1 | 720P |
| External 2 | 720P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 100 fps |
| Compression format | G.711A |
Network
| Feature | Details |
|---|---|
| MC401X-EU | FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| MC401X-LA | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
| MC401X-NA | FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WiFi | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808–2011, JT/T808–2019 JT/T1076–2016, JT/T1078–2016 |
Others
| Feature | Details |
|---|---|
| Power supply | DC: +9V ~ +36V |
| Operation Temperature | –20°C to 70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 240g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC/RoHS |
