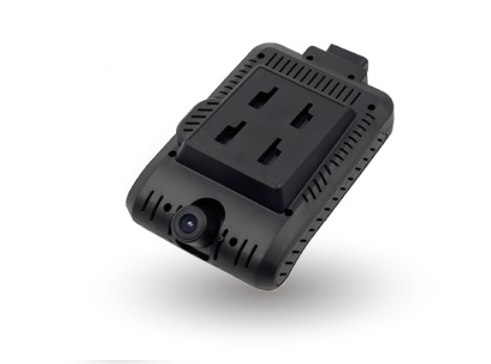

MC402 4G Quad Channel AI Dash Cam
MC402 is an advanced dash camera with 1 built-in camera and 3 remote cameras supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and improper driver behavior such as using mobile phones, fatigue driving detection, lens covered detection, smoking detection to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
Key Features
4-CH Recording with DMS and ADAS
Device supports 1 built-in ADAS dash camera, 1 remote DMS camera and 2 remote cameras, capturing clear views for double protection and safer daily driving.
Reliable Witness for Accident
Device detects dangerous driving, captures photos, videos, and GPS position, uploads to cloud for evidence review.
Remote Video and Audio Surveillance
Device offers crystal-clear 1080P video with microphone and speaker, allowing remote car monitoring anytime, anywhere.
Extension Interface
2 RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader, 2 digital input.
Expanded storage
1 TF card for video storage, Max. 512GB.
Easy to use
Provide mobile App, PC, and software platform for video preview and parameter configuration.
4-CH IP
Support simultaneous data upload to a maximum of 4 IP.
Panic button
Efficient SOS button and platform swiftly summon rescue services with a single click.
Product specifications
Hardware
| Feature | Details |
|---|---|
| Operation system | Linux |
| CPU | ARM Dual-Core processor@1.5GHz |
| Memory | DDR 512Mb+ Flash 2Gb+TF card (512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | ✓ |
| Mic | ✓ |
| Sim card | Standard sim |
| USB | ✓ |
| LED | Red(Power), Green(Internet&video recording) |
| I/O ports | 2 digital input, 2 RS232 |
Camera (support 2-CH AI)
| Feature | Details |
|---|---|
| Front | 1080P ADAS |
| external 1 | Cabin view camera 1080P |
| External 2 | Rear view camera 1080P |
| External 3 | Side View camera 1080P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL , NTSC |
| Video resolution | Total 1080P at 100 fps |
| Compression format | G.711A |
Network
| Feature | Details |
|---|---|
| 4G LTE | |
| MC402-EU | FDD LTE: B1/B3/B5/B7/B8/B20/B28 |
| TDD LTE: B38/B40/B41 | |
| WCDMA: B1/B5/B8 | |
| GSM: 850/900/1800/1900MHz | |
| MC402-American | FDD LTE: B2/B3/B4/B5/B7/B12/B18 |
| TDD LTD: B38/B41(100M) | |
| WCDMA: B2/B4/B5 | |
| GSM: 850/1800/1900MHz | |
| WiFi | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808–2011, JT/T808–2019 |
| JT/T1076–2016, JT/T1078–2016 |
Others
| Feature | Details |
|---|---|
| Power supply | DC: +9V ~ +36V |
| Operation Temperature | –20°C to +70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 300g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC |
