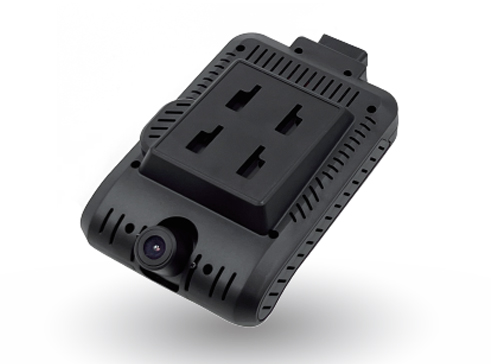

MC403 4G Quad Channel AI Dash Cam
MC403 is an advanced dash camera with 1 built-in camera and 3 remote cameras supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and improper driver behavior such as using mobile phones, fatigue driving detection, lens covered detection, smoking detection to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
Key Features
4-CH Recording with DMS and ADAS
Device supports 1 built-in ADAS dash camera, 3 remote cameras, capturing crystal-clear views for double protection and safer daily driving.
Reliable Witness for Accident
Device detects dangerous driving, captures photos, videos, and GPS position, uploads to cloud for evidence review.
Remote Video&Audio Surveillance
Device offers crystal-clear 1080P video and TTS Voice broadcast with microphone & speaker, allowing remote car monitoring anytime, anywhere.
Extension Interface
1 RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader, 2 digital inputs and 1 digital output.
Expanded storage
1 TF card for video storage, Max. 512GB
Easy to use
Provide mobile APP, PC, and software platform for video preview and parameter configuration.
4-CH IP
Support simultaneous data upload to a maximum of 4 IP.
SOS button
Efficient SOS button and platform swiftly summon rescue services with a single click.
Product specifications
Hardware
| Feature | Details |
|---|---|
| Operation system | Linux |
| CPU | Dual-core CPU + NPU@1.0T |
| Memory | DDR 2G + TF card (Max.512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | ✓ |
| Mic | ✓ |
| Sim card | Standard SIM |
| USB | ✓ |
| LED | Red(Power), Green(Internet&video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 2*RS232 |
Camera (support 2CH AI)
| Feature | Details |
|---|---|
| Front | 1080P ADAS, /82*(HFoV) |
| External 1 | 720P |
| External 2 | 720P |
| External 3 | 720P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL , NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 100 fps |
| Compression format | G.71IA |
Network
| Feature | Details |
|---|---|
| MC403-EU | FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| MC403-LA | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
| MC403-NA | FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WiFi | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808–2011, JT/T808–2019 JT/T1076–2016, JT/T1078–2016 |
Others
| Feature | Details |
|---|---|
| Power supply | DC: +9V ~ +36V |
| Operation Temperature | –25℃ to +70℃ |
| Operation Humidity | 20% to 80% |
| Net weight | 300g |
| Dimension | 138mm*85mm*45mm |
| Certification | CE/FCC/RoHS |
