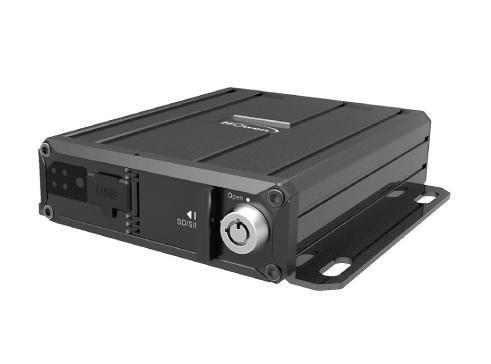

2 Channel MDVR
2 Channel MDVR
Compact Mobile Digital Video Recorder
This is one of the best and smallest mobile DVRs ever in the market.
Dustproof MDVR
The mini 2 channel MDVR has been designed with dustproof standards so that it can fit in heavy-duty trucks’ environments and applications. The device can be installed effortlessly in various areas of the trucks.
Rich Interface and All-In-One Design
Rich interfaces include alarm inputs/outputs, RS232, video outputs. Built-in GPS/3G/LTE/G-sensor provides functional features working with multiple platforms.
Product Description
Compact Size
Compact size, miniature design helps in flexible and effortless installations;
H.265 Video Recording
H.265 video recording, saving up to 50% video storage and data streaming;
Vehicle Camera Support
Support to connect to any type of vehicles camera for installation in any location；
Industry-Level Design
Industry-level design: dustproof and high-temperature resistance for commercial vehicles;
Built-in Modules
Built-in GPS/3G/LTE/G-SENSOR;
Alarm Triggering System
Alarm triggering system avoid damage by drivers or passengers;
Specification
| Standard Configuration | |
| Model | 2 Channel MDVR |
| Item | Specification |
| OS | Linux |
| Operating Language | Chinese/English (Available for Customization) |
| Operating Interface | Graphical menu interface (OSD menu) |
| Password Security | Two-level managements: user password/admin password |
| Video-Input | Support 2ch CIF/HD1/D1/960H/720P/1080p AHD camera record and playback simultaneously
Total resource: 1080p@60fps |
| Video Output | 1. CVBS video output: 4PIN aviation male connector
2. VGA output: 6PIN aviation male connector: |
| Video Display | Support 1-2ch |
| Video Standard | PAL/NTSC |
| Image Compression | H.264/H.265 Main profile， PAL： 100fps 1080P, NTSC：120fps 720P |
| Audio input | 2ch RCA |
| Audio Output | 1ch RCA (4 PIN connector) |
| Record mode | audio and video are recorded simultaneously |
| Image Format | CIF/HD1/D1/960H/720P/1080p optional |
| Video quality | 8 levels image quality optional, 1 is the highest, 8 is the lowest |
| Video Compression | H.265/H.264 |
| Audio Bitrates | 40Kbps |
| Alarm input | 2 alarm inputs |
| Alarm output | 1 alarm output, (12V high-level) |
| RS485 port | (not support) |
| RS232 port | 1*RS232 port |
| RJ45 port | (not support) |
| USB port | 1x USB2.0. type A female, front panel USB |
| 3G/4G | Support built-in 3G communication module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) optional, Built-in 4G communication module (FDD-LTE/TDD-LTE) optional |
| Wi-Fi | (not support) |
| GPS | Support built-in GPS module can write into encoding stream with Geographical coordinates speed, etc. |
| G-sensor | Built-in accelerometer G-Sensor |
| Storage | Support 1 SD card, up to 256GB |
| Upgrade | Support SD card port and VSS platform updating |
| Power input | +8～+36V |
| Power output | 12V (+/- 0.2V), the maximum electric current: 2A |
| ACC detection | ≤4V take off |
| ≥5V take on | |
| Operating temperature | -20℃～70℃ |
| Operation humidity | 20% to 95% |
| Standard Packing | |
| 2 Channel MDVR unit | 1 |
| Power Cable | 1 |
| User Manual | 1 |
APPLICATIONS
- Small Vehicle Surveillance
- Taxi Monitoring
- Motorcycle and Scooter Tracking
- Personal Fleet Management
