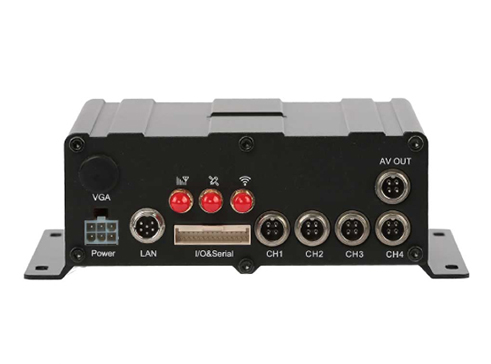

4 Channel MDVR
4 Channel MDVR provides high resolution and low lux imaging.
Delivers its best in just 50% Video Storage
With H.265 video compress technologies, 4 Channel MDVR can save up to 50% for storage and data streaming.
Standard Aviation Port for all Connections
Aviation ports can provide stable connections between cameras and MDVR, which make sure each function would not be affected by shaking or teasing.
Built-in Wireless Modules
Support LAN/3G/LTE/WIFI for network, and built-in GPS module,
Further, G-sensor can be used to monitor driving behaviors.
Product Description
- Supports 4 ch AHD 720P/ 1080P cameras and 4 FHD IPC;
- Industry-leading CPU with powerful processing ability;
- Support NAND flash (max. 4GB) to extend internal storage;
- Supports HDD/SSD for recording. Max. 2TB;
- Support HD video output (VGA port for optional);
- Robust design: Cast aluminum enclosure. Patented design;
- Selected industrial power chipsets, support 8-36V wide range power input, adapt to the harsh environment;
- Support external Fireproof box, to backup data in extreme scenarios;
- 1 SD card for backup recording, max.256GB;
- Dual streams for local recording and wireless transmission;
- Support 3G/4G, Wi-Fi, GPS modules;
- Built-in G-sensor for harsh acceleration/deceleration detection;
- Data self-protection, save data when shut down abnormally;
Technical Parameter
| Model | 04 Channel MDVR |
| Item | Specification |
| System | |
| Total resource | 1080p@120fps recording, H.264/H.265 |
| OS | Linux |
| Support Language | English, Russia, Portuguese, Spanish etc. |
| Control | Support remote controller and mouse for control
External display for GUI Support Mobile Check for configuration Support web access in LAN network |
| Credential | Support username and password management for enterprise operation |
| Video System | |
| Video Input | 4 ch AHD 1080P @30fps + 4 ch IP 1080p@30fps
2 ch AHD 1080P+2WD1 @30fps + 4 ch IP 1080p@30fps 2 ch AHD 1080P+2 ch AHD 720P @20fps + 4 ch IP 1080p@30fps 2 ch AHD 1080P+2 ch AHD 720P @30fps+ 4 ch IP 1080p@30fps 2 ch AHD 1080P+2 ch D1 @20fps + 4 ch IP 1080p@30fps 2 ch AHD 1080P @15fps+2 ch D1 @30fps + 4 ch IP 1080p@30fps 4 ch AHD 720P @30fps + 4 ch IP 1080p@30fps |
| Video input port | 4x6PIN aviation male connector (converted to 8x4PIN aviation mail connectors)
1.0Vp-p, 75Ω |
| LAN port | 1 channel, (Aviation 6-pin Ethernet port™) |
| Video Output | 1. 1channel CVBS video signal output, 1.0Vp-p, 75Ω, support1/4/9 display
2. VGA FHD video output up to 1920*1080 resolution (Optional) |
| Video Output port | 6 PIN Aviation Output™ |
| High Definition Output | Support HD video output, VGA output DB female connector (optional)
Can be converted to HDMI port |
| Video compression algorithm | H.265 compression |
| Preview | 1/4/9 display. Support manual/trigger full screen display |
| Recording resolution | Support 1080P, 720P, D1, HD1, CIF.
Max. 8 ch 1080p + 4ch 1080p |
| Image quality | 1 to 8 image quality configurable (1 is the best quality, 8 the lowest, default is 4) |
| Recording frame rate | PAL: 100fps, CCIR625 line,50 Hz
NTSC: 120fps, CCIR525 line,60Hz CIF: 256Kbps ~ 1.5Mbps HD1: 600Kbps ~ 2.5Mbps D1: 800Kbps ~ 3Mbps 720P: 1Mbps-4Mbps 1080P: 1Mbps~8Mbps |
| Recording Plan | Default auto-recording; Support ignition recording, manual recording, alarm recording |
| OSD | Support OSD display of date, time, vehicle ID, alarm name, etc. |
| Alarm recording | Support alarm trigger recording, fps and image quality configurable. (Alarm triggered recording in higher fps and quality for more video info, while Normal recording in normal fps and quality to save storage) |
| Pre-recording time | 0-60s |
| Post recording time | 0-3600s |
| Video search | Support to retrieval video by time, recording types |
| Playback | Support max. 8 channel simultaneously playback. Support 2/4/8/16 times fast play/fast review |
| Audio system | |
| Audio Input | 4 ch audio input. Back panel AV input aviation connectors |
| Audio output | 1 channel audio signal output. (3 ports for output: back panel 4 PIN aviation male connector; VGA connector; front panel 3.5mm AV out hole) |
| Two-way audio (Push to talk) | Support (Optional), Bidirectional call/dial |
| Audio compression algorithm | G.726, 8KB/s |
| Interface | |
| IO input | 8 channel alarm input |
| IO output | 2 channel alarm output, support remote power off and cut fuel |
| Motion detection | Support |
| RS232 | 2 channel RS232 |
| RS485 | 1 channel RS485 |
| CAN | 1 ch CANBUS (optional) |
| 1-wire | 2 channels |
| OBD | Support external serial-OBD box (Optional) |
| USB | 1x USB2.0. Front-panel USB |
| G-sensor | Built-in |
| Network | |
| LAN port | 1×10/100/1000Mbp 6-pin aviation port |
| 3G/4G | Support built-in 3G/4G module optional：WCDMA, CDMA2000, GPRS, EDGE；TDD-LTE, FDD-LTE.
Default as selected Huawei 3G/4G module. Different bands are optional for particular carriers Support 2 antennas (main antenna and auxiliary antenna) |
| SIM card | 1 SIM card slot |
| Wi-Fi CPE | Support Built-in 2.4G Wi-Fi module optional
2.4G/5.8G dual-band Wi-Fi optional (Customized); |
| Wi-Fi AP | Wi-Fi AP mode for hotspot (optional) |
| Location | Support GPS (default U-BLOX™) |
| Storage | |
| HDD | Support 1x 2.5-inch HDD or SSD; Max. 2TB |
| SD card | Support 1x SD card, max. 256GB |
| Upgrade | U disk upgrade; SD card upgrade; FTP remote batch upgrade |
| File system | Howen Special File System to secure data. |
| Fireproof box | Support external Fireproof box (optional) |
| Power | |
| Power circuit | Selected Linear power chipsets, adaptive to wide range of power. Protect from overload, under voltage, short circuit, reverse polarity
Support timer switch, delay off. |
| Power Voltage | DC: +8V ~ +36V |
| Power output | +12V@2.5A，+5V@2A |
| Power consumption | ＜5W |
| UPS Function | Support external UPS (Oder individually) |
| Environment | |
| Temperature | -40℃ to +75℃ |
| HDD heater | Optional (For cold environment) |
| Humidity | 10% to 90% |
| IP protection | IP54 |
