This MDVR comes packed with a range of features making this one of the best MDVR available in the market



Delivers its best in just 50% Video Storage

With H.265 video compress technologies, 8 Channel MDVR can save up to 50% for storage and data streaming.



Support up to 12 Channels

8 Channel MDVR can support 8 channel AHD cameras and 4 IP cameras,  which can provide up to 12 cameras for viewing and recording at the same time.



Built-in Wireless Modules

Support LAN/3G/LTE/WIFI for network, and built-in GPS module,

Further, G-sensor can be used to monitor driving behaviors.







Product Description


  • This device,

            Support 8CH AHD 1080P+1CH 1080P IPC

            Support 8CH AHD 1080P+4CH 1080P IPC (With PON switch)



  • Device has Industry-leading CPU with powerful processing abilities with H.265 and AI technologies;



  • This support intelligent analysis, such as fatigue detection, phone detection, smoking detection



  • Backs HDD/SSD for recording. Max. 2TB and 256GB for SD storage;



  • Provides dual antennas for cellular or Wi-Fi;



  • Robust design: Cast aluminum enclosure. Patented design



  • Selected industrial power chipsets, support 8-36V wide range power input, adapt to harsh environment



  • 1 pc SD cards for backup recording, max.256GB;



  • Dual streams for local recording and wireless transmissions;



  • Support 3G/4G, Wi-Fi, GPS modules;



  • Built-in G-sensor for harsh acceleration/deceleration detection;



  • Data self-protection, save data when shut down abnormally;



Technical Parameters


Model8 Channel MDVR
ItemSpecification
System
Total resource1080p@120fps recording, H.265
OSLinux
Support LanguageEnglish, Russia, Portuguese, Spanish etc.
ControlSupport remote controller and mouse for control

External display for GUI

Support Mobile Check for configuration

Support web access in LAN network

CredentialSupport username and password management for enterprise operation
Video System
Video Input4 ch AHD 1080P @30fps + 4 ch IP 1080p@30fps

8 ch AHD 1080P @15fps + 4 ch IP 1080p@30fps
8 ch 720P AHD @30fps + 4 ch IP 1080p@30fps

2 ch AHD 1080P+6WD1 @30fps + 4 ch IP 1080p@30fps

2 ch AHD 1080P+6 ch AHD 720P @20fps + 4 ch IP 1080p@30fps

2 ch AHD 1080P+4 ch AHD 720P @30fps+ 4 ch IP 1080p@30fps

4 ch AHD 1080P+4 ch D1 @20fps + 4 ch IP 1080p@30fps

4 ch AHD 1080P @15fps+4 ch D1 @30fps + 4 ch IP 1080p@30fps

4 ch AHD 720P+4 ch D1 @30fps + 4 ch IP 1080p@30fps

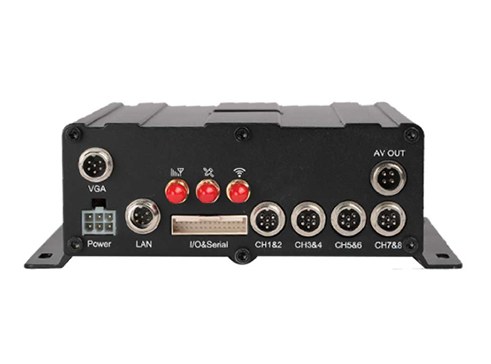

Video input port4x6PIN aviation male connector (converted to 8x4PIN aviation mail connectors)

1.0Vp-p, 75Ω

LAN port1 channel, (Aviation 6-pin Ethernet port™)
Video Output1. 1channel CVBS video signal output, 1.0Vp-p, 75Ω, support1/4/9 display

2. VGA FHD video output up to 1920*1080 resolution (Optional)

Video Output port6 PIN Aviation Output™
High Definition OutputSupport HD video output, VGA output DB female connector (optional)

Can be converted to HDMI port

Video compression algorithmH.264/H.265 compression
Preview1/4/9 display. Support manual/trigger full-screen display
Recording resolutionSupport 1080P, 720P, D1, HD1, CIF.

Max. 8 ch 1080p + 4ch 1080p

Image quality1 to 8 image quality configurable (1 is the best quality, 8 the lowest, default is 4)
Recording frame ratePAL: 100fps, CCIR625 line,50 Hz

NTSC: 120fps, CCIR525 line,60Hz

CIF: 256Kbps ~ 1.5Mbps

HD1: 600Kbps ~ 2.5Mbps

D1: 800Kbps ~ 3Mbps

720P: 1Mbps-4Mbps

1080P: 1Mbps~8Mbps

Recording PlanDefault auto-recording; Support ignition recording, manual recording, alarm recording
OSDSupport OSD display of date, time, vehicle ID, alarm name, etc.
Alarm recordingSupport alarm trigger recording, fps and image quality configurable. (Alarm triggered recording in higher fps and quality for more video info, while Normal recording in normal fps and quality to save storage)
Pre-recording time0-60s
Post recording time0-3600s
Video searchSupport to retrieval video by time, recording types
PlaybackSupport max. 8 channel simultaneously playback. Support 2/4/8/16 times fast play/fast review
Audio system
Audio Input8 ch audio input. Back panel AV input aviation connectors
Audio output1 channel audio signal output. (3 ports for output: back panel 4 PIN aviation male connector; VGA connector; front panel 3.5mm AV out hole)
Two-way audio (Push to talk)Support (Optional), Bidirectional call/dial
Audio compression algorithmG.726, 8KB/s
Interface
IO input8 channel alarm input
IO output2 channel alarm output, support remote power off, and cut fuel
Motion detectionSupport
RS2322 channel RS232
RS4851 channel RS485
CAN1 ch CANBUS (optional)
1-wire2 channels
OBDSupport external serial-OBD box (Optional)
USB1x USB2.0. Front-panel USB
G-sensorBuilt-in
Network
LAN port1×10/100/1000Mbp 6-pin aviation port
3G/4GSupport built-in 3G/4G module optional:WCDMA, CDMA2000, GPRS, EDGE;TDD-LTE, FDD-LTE.

Default as selected Huawei 3G/4G module. Different bands are optional for particular carriers

Support 2 antennas (main antenna and auxiliary antenna)

SIM card1 SIM card slot
Wi-Fi CPESupport Built-in 2.4G Wi-Fi module optional

2.4G/5.8G dual band Wi-Fi optional (Customized);

Wi-Fi APWi-Fi AP mode for hotspot (optional)
LocationSupport GPS (default U-BLOX™)
Storage
HDDSupport 1x 2.5-inch HDD or SSD; Max. 2TB
SD cardSupport 1x SD card, max. 256GB
UpgradeU disk upgrade; SD card upgrade; FTP remote batch upgrade
File systemHowen Special File System to secure data.
Fire proof boxSupport external Fireproof box (optional)
Power
Power circuitSelected Linear power chipsets, adaptive to wide range of power. Protect from overload, under voltage, short circuit, reverse polarity

Support timer switch, delay off.

Power VoltageDC: +8V ~ +36V
Power output+12V@2.5A,+5V@2A
Power consumption<5W
UPS FunctionSupport external UPS (Oder individually)
Environment
Temperature-40℃ to +75℃
HDD heaterOptional (For cold environment)
Humidity10% to 90%
IP protectionIP54
