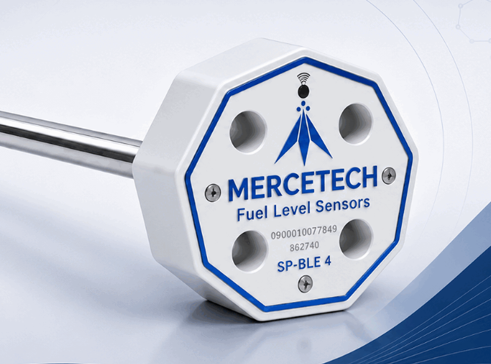

SP-BLE 4
BLE Fuel Level Monitoring Sensor
Wirelessly transmits real-time fuel level data to your GPS tracker over Bluetooth.
Description
The SP-BLE 4 Fuel Level Sensor is a capacitive fuel-monitoring device that measures the level of fuels and lubricants in vehicle and stationary tanks in real time. Built on a wireless Bluetooth Low Energy (BLE) interface, it is read directly by a compatible GPS tracker or transport control terminal, so no data wiring is required. It is suitable for diesel fuel, gasoline and oil, housed in a rugged IP68 anodised aluminium body, and its measuring tube can be cut down or extended to fit almost any tank. With a permissible measurement error of no more than 1% and an integrated temperature sensor, it supports accurate fuel consumption reporting across fleets, generators and industrial fuel storage.
High-Accuracy Capacitive Measurement
A capacitive probe converts fuel level into a precise reading with a permissible measurement error of no more than 1%.
Wireless BLE Connectivity
Fuel level, temperature and battery data are read wirelessly over Bluetooth Low Energy by your GPS tracker or transport control terminal.
Built-in Temperature Sensing
An integrated sensor measures temperature from -40°C to +85°C with a 0.5°C error, supporting temperature-stable fuel readings.
Cuttable and Extendable Probe
The 1000 mm standard measuring part can be cut shorter or extended up to 5 m to fit shallow or deep tanks.
Rugged IP68 Design
An anodised aluminium body with a glass-filled polypropylene cover is sealed to IP68 for dust and water resistance in harsh environments.
Long Battery Life
A replaceable Li-SOCL2 14500 3.6V battery gives an average product lifetime of up to 7 years, with remaining battery life reported in months.
Easy Tracker Integration
A TD Escort compatible protocol with BLE auto-search or MAC-address pairing connects the sensor to your Falcon tracker.
Specification
| Parameter | Value |
|---|---|
| Standard Configuration | |
| Connectivity | Bluetooth Low Energy (BLE) |
| Sensor Type | Capacitive fuel level sensor with integrated temperature sensor |
| Measured Media | Diesel fuel, gasoline, oil and other light petroleum products |
| Measurement Error | No more than 1% |
| Standard Probe Length | 1000 mm |
| Maximum Probe Length | 5 m (with extension tubes) |
| Minimum Probe Length | Not limited (probe is cuttable) |
| Operating Temperature Range | -40°C to +60°C |
| Measuring Temperature Range | -40°C to +85°C |
| Temperature Error | 0.5°C |
| Output Data | Fuel level, temperature, battery status, sensor ID |
| Protocol Compatibility | TD Escort compatible |
| Battery | Li-SOCL2 14500 3.6V (replaceable) |
| Battery Life | Up to 7 years (average product lifetime) |
| Enclosure Protection Class | IP68 |
| Housing | Anodised aluminium body, glass-filled polypropylene cover |
| Weight | Not more than 1 kg |
| Configuration App | FLS Config (Android) |
| Warranty | 12 months from date of sale (18 months from production date if no sale date is recorded) |
| Manufacturer Standard | ISO 9001:2015 |
| Standard Packing | |
| Level Sensor | 1 |
| Measuring tube | 1 |
| Self-tapping screws | 5 |
| Plastic seal | 5 |
| Rubber gasket | 1 |
Applications
- Fleet and commercial vehicle fuel monitoring
- Construction and mining equipment
- Oil and gas tankers
- Stationary and bulk fuel storage tanks
- Diesel generators (DG sets)
- Fuel consumption reporting and fuel theft detection
